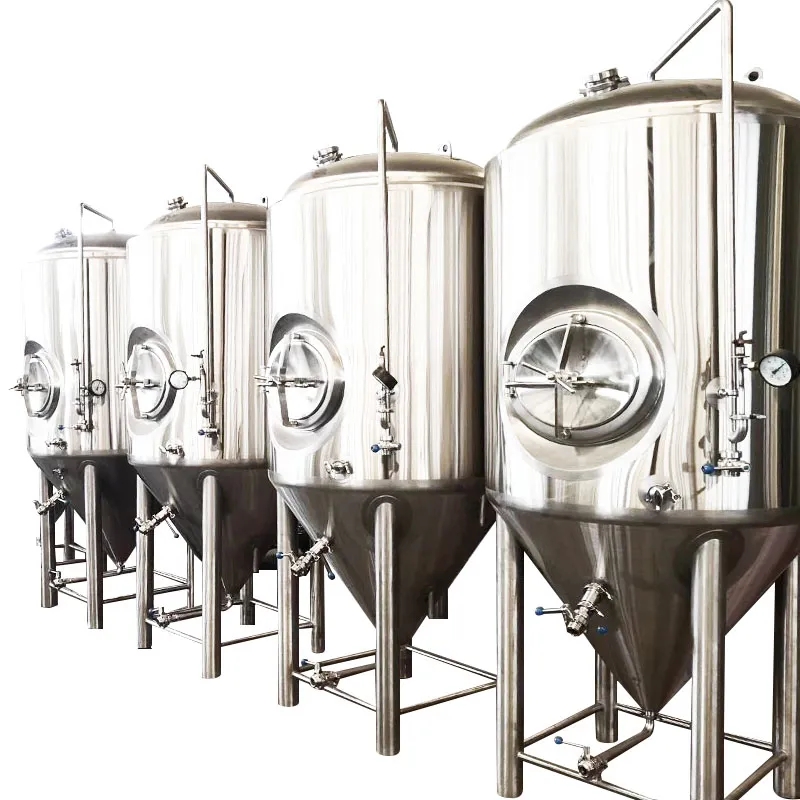

1000L GHO Stainless Steel Beer Fermention Tank

1. Volume from 100L-30000L,could be customized according to customer needs.
2. Material use sanitary stainless steel.
3. Three layer structure: Inner body,Jacket and isolation.Isolation layer filled with insulation material.
4. Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish.
5. Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket.
6. All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish.
7. PLC control system,which could achieve automatic,semi automatic control,to ensure the accurately and effectively of parameters and experimental results.

• Scientific design
• Take small space
• Easy to clean
• 100% stainless steel 304
• Easy to install
• 3 Years warranty

Phone : +86-531-66621211
E-mail : info@gstachina.com
Whatsapp : +86-18660398316

Description

Name	Beer fermenter
Application	Hotels, Food & Beverage Factory, Restaurant,KTV,Pub
Brand Name	GHO
Function	Wort fermentation and maturation
Capacity(L)	1000
Gross volume(L)	1250
Effective volume(L)	1000
Size (about) (mm)	126012602460
Weight (Kg)	340
Material	SUS304
Outer TH (mm)	2
inner TH (mm)	2.5
Insulation material	Polyurethane
Insulation thickness (mm)	80
Top type	Seal head
Manhole type	side
Manhole size (mm)	350*350
Cone Degree	60degree
CIP pipe diameter (mm)	32
CIP ball	32mm
Temperature sensor	10mm
Side fitting thermowell diameter and length about	8mm(D)*30mm(L)
Support leg	102*102mm
Adjustable bolt	M20
Polishing	acid passivation
Design pressure	0.3-0.4 Mpa
Working pressure	0.15-0.2Mpa
Cooling type	jacket
Cooling area	4.1
Colling Jacket inlet	25mm
Cooling jacket outlet	25mm
Pressure gauge	32mm
Rotating Racking arm	32mm
Sample valve	25mm
Drain outlet	38mm
Hop port	89mm
Air magnetic valve	no
Ice water magnetic valve	25mm
safety valve (PVRV)	38mm
Liquid level indicator	no
Pressure Regulator (Ice water solenoid valve)	20mm
Butterfly valve	25mm/32mm/38mm
100% TIG welding with pure argon gas shield with	yes
Tri-clamp	51mm
CO2 Pressure Relief Device	25mm
40HQ quantity	54
40GP	54
20GP	27
