Commercial 1000L Conical beer fermenter with heating and cooling jacket

1. Volume from 100L-20T,could be customized according to customer needs.
2. Material use sanitary stainless steel 304.
3. Four layer structure: Inner body,Glycol jacket,Isolation layer and Outer body.
4. Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish.
5. Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket.
6. All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish.
7. Connect the control cabinet, automatic temperature control.

● Famous Chinese manufacturer
● Fast delivery
● Free Consultation
● Lifetime warranty
● Support OEM and ODM
● CE certification
● site installation
● mach more at home and professional
● High-quality beer brewing equipment
● Efficient brewing equipment

Phone : +86-531-66621211
E-mail : info@gstachina.com
Whatsapp : +86-18660398316

Specification

Name	Commercial 1000L Conical beer fermenter with heating and cooling jacket
Application	Beer Factory, Restaurant
Brand Name	GHO
Function	Wort fermentation and maturation
Capacity(L)	1000
Gross volume(L)	1250L
Effective volume(L)	1000
Size (about) (mm)	126012602460
Weight (Kg)	340
Material	SUS304
Outer TH (mm)	2.0
inner TH (mm)	2.5
Insulation material	Polyurethane
Insulation thickness (mm)	80
Top type	Seal head
Manhole type	top
Manhole size (mm)	350*350
Cone Degree	60degree
CIP pipe diameter (mm)	32
CIP ball	32mm
Temperature sensor	10mm
Side fitting thermowell diameter and length about	8mm(D)*30mm(L)
Support leg	89*89mm
Adjustable bolt	M20
Polishing	acid passivation
Design pressure	0.3-0.4 Mpa
Working pressure	0.15-0.2Mpa
Cooling type	Glycol jacket
Cooling area	4.1
Pressure gauge	32mm
Rotating Racking arm	32mm

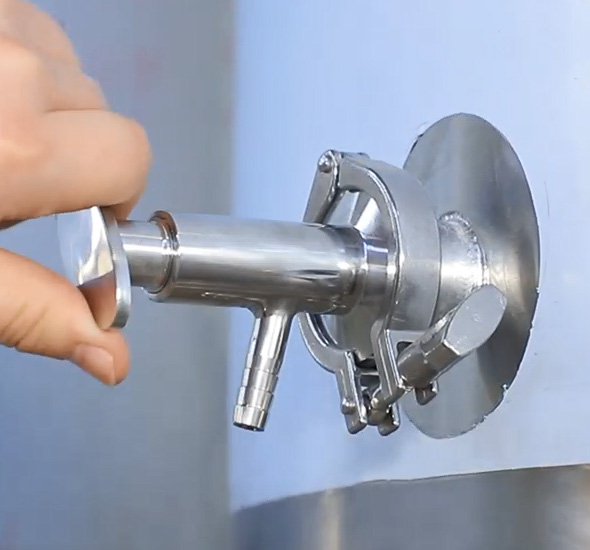

Sample valve	25mm
Drain outlet	38mm
Hop port	custom
safety valve (PVRV)	38mm

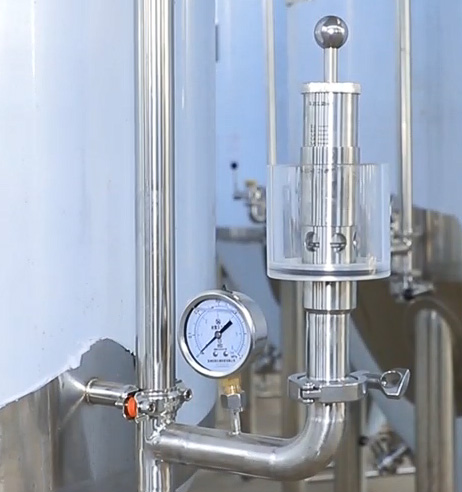

Pressure Regulator	20mm

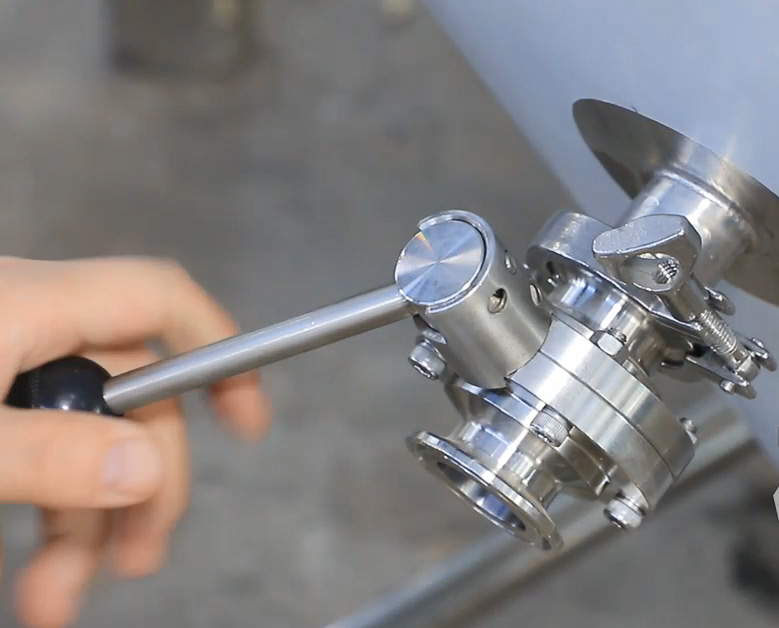

Butterfly valve	25mm/32mm/38mm
100% TIG welding with pure argon gas shield with	yes
Tri-clamp	51mm
CO2 Pressure Relief Device	25mm

Description

Main Features.

1.With rotating racking arm for beer delivery, which is convenient and flexible to deliver beer.

2.All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.

3.Strict quality control and process inspection & testing system.

4.Polished/Brushed/Mirror finish/Pickling passivation is optional.

5.Side manhole or top manhole according to the customer’s fermentation process and brewing types.

6.Bigger headspace, the cover headspace volume is calculated separately and extra.

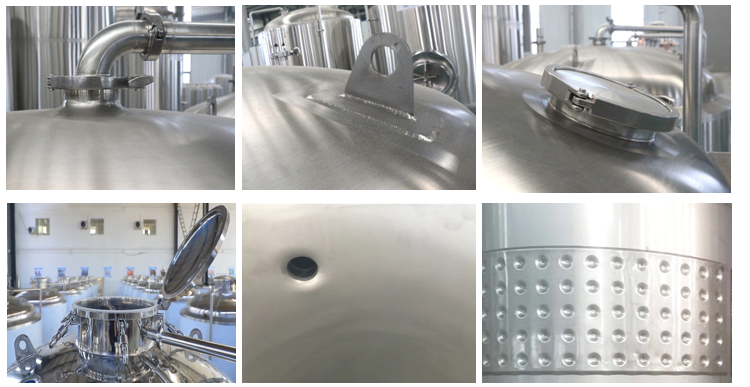

7.Specially designed dimpled heating and cooling jackets outside to ensure cooling efficiency 60-degree cone angle for convenient for yeast excretion.

8.Fermenters are made by 100% stainless steel 304, even bolt and screw.

9.Our fermenter has more than 125% space of working capacity, promise foam won’t go out.

10.We test 5 times before delivery, to ensure good delivery status.

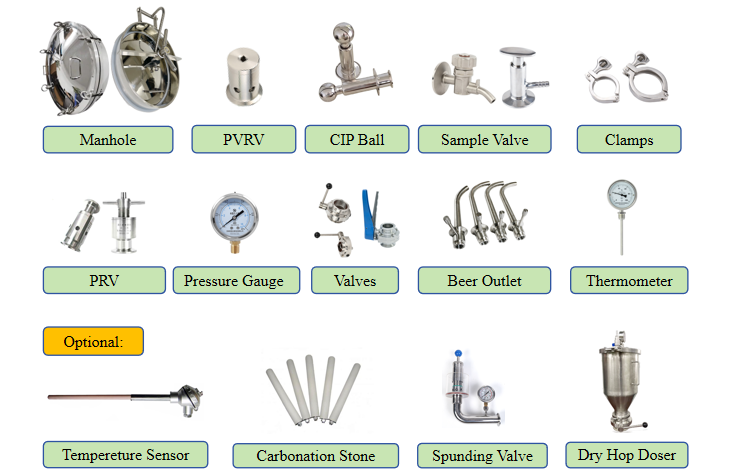

Fermenter accessories：

Successful Sale Cases： Our Services.

1. Pre-saleSend us your site drawings or dimensions, and we will provide you with the floor area of the beer equipment. Then, according to your requirements, the technical engineer will draw the drawings. For a more intuitive view of the device layout, we can also provide 3D sketch.
2. After-sale
-We can provide production pictures to let you clear of production progress and production details;
-We will do equipment test and provide test report to you;
-We will number the pipes and provide photos of the remaining pipes that need to be assembled,Greenhand can finish it;
-Providing equipment installation, debugging, and personnel training service;
-Tank body guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

Production Workshop.

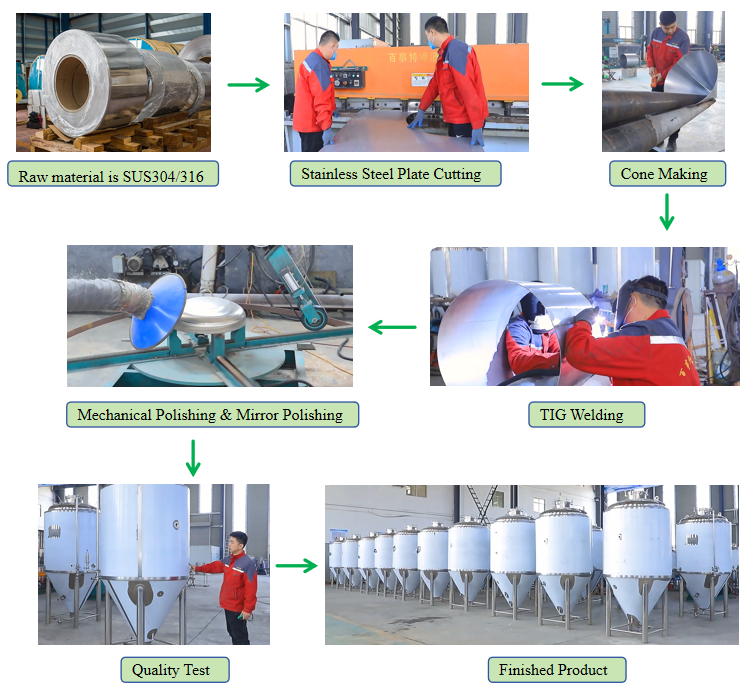

We choose stainless steel 304/316 plates from well-known domestic brands, use professional machines to cut and shape the plates, and then have workers with more than 10 years of production experience to process and produce them. After the product is completed, our professional inspectors will inspect the product, and a third-party or Alibaba inspection team will also come to the factory to inspect the product. If everything is fine, we will arrange for package and transportation.

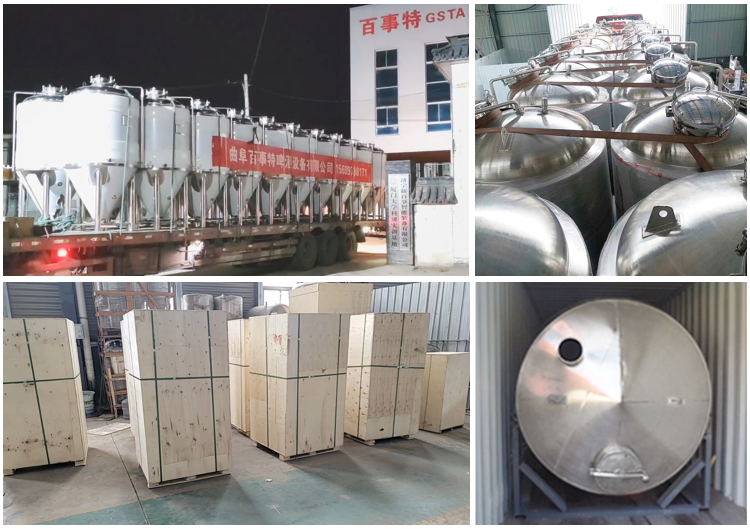

Packaging & Shipping.

1. In order to help customers to install easily, All piping mark numbers before shipping.
2.All the accessorizes for brewhouse and fermenting will be counted and packed separately.

3.Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.

Don’t miss out on the opportunity to own this outstanding beer brewing equipment. Contact us today and start brewing exceptional beers for your customers.

Company Profile

At JINAN PERFECT BEER KITS CO., LTD. we mainly produce beer brewing equipments, alcohol distillation equipment, beer filling & packaging machines, keg beer dispensing system and parts. We have been successful in this business since 2009 with two brands, GSTA & GHO.

Our forte is in whisky, brandy, vodka, gin, rum distillation equipment. Beer equipment and Bar counter beer dispensing system is another one of our most important business. We have a range of 14 series of more than 300 products. For all your brewing & dispensing needs, you can contact us! We firmly believe the foundation of all co-operation is based on mutual trust and Win-Win situation. Distance should not be a barrier to communication.

We sincerely looking forward to receiving your inquiries.Welcome all beer experts and beer lovers come to visit us!

FAQ

1. who are we?

We are based in Shandong, China, start from 2014,sell to Oceania(50.00%),Northern Europe(15.00%),Southeast Asia(10.00%),North America(10.00%),South America(5.00%),Western Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

3.what can you buy from us?

beer equipment,brewery turnkey project,beer dispenser system,whiskey distillation equipment,alcohol distillation equipment.

4. why should you buy from us not from other suppliers?

Our greatest advantage lies in beer, whiskey, & vodka, turnkey brewery construction. The second is rich experience in export. From raw materials to turnkey brewery. All products of alcohol factory required (including laboratory facilities) we can provide.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,CIP,Express Delivery； Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash; Language Spoken:English,Chinese.
