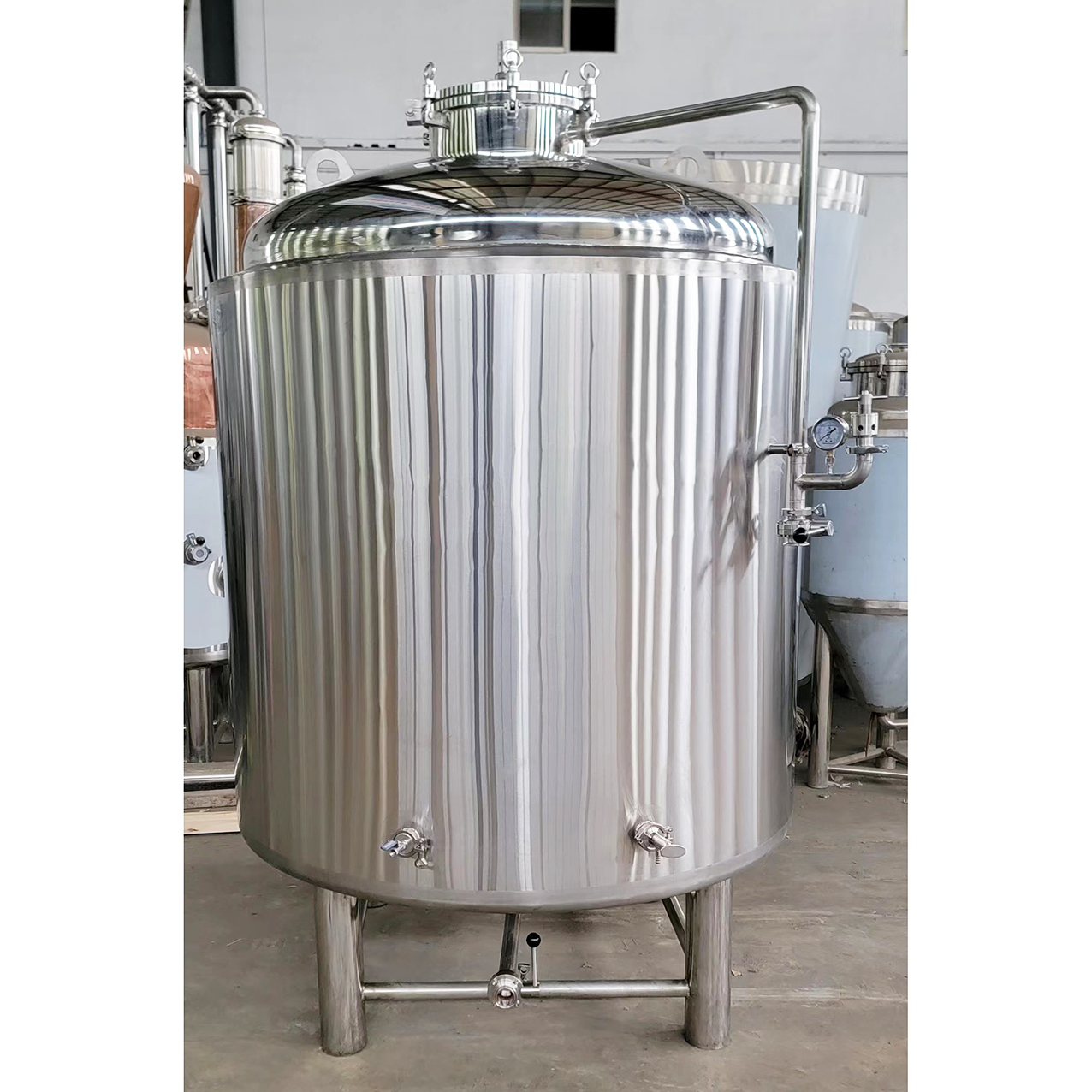

GHO 1000L Bright Beer Tank

Bright beer tanks are also called serving tank or BBT.

Used for the storage of the beer prior to being served or packaged.

Bright beer tank can be vertical/ horizontal super-imposed.

These tanks use scientific pressure maintaining and cooling method, it can achieve rapid cooling and sub-cooling.

Bright beer tanks is equipment with titanium rod for carbonation.

● Scientific design
● Take small space
● Easy to clean
● 100% stainless steel 304
● Easy to install
● 3 Years warranty

Phone : +86-531-66621211
E-mail : info@gstachina.com
Whatsapp : +86-18660398316

Specification

Name	GHO 1000L Bright Beer Tank
Application	Beer Factory, Restaurant
Brand Name	GHO
Function	Storage of the beer prior to being served or packaged
Capacity(L)	1000
Gross volume(L)	1360L
Material	SUS304
Outer TH (mm)	2.0
inner TH (mm)	2.5
Insulation material	Polyurethane
Insulation thickness (mm)	80
Manhole type	Top manhole
Manhole size (mm)	350*350
CIP pipe diameter (mm)	32
CIP ball	32mm
Temperature sensor	10mm
Side fitting thermowell diameter and length about	8mm(D)*30mm(L)
Support leg	89*89mm
Adjustable bolt	M20
Polishing	acid passivation
Design pressure	0.3-0.4 Mpa
Working pressure	0.15-0.2Mpa
Cooling type	Glycol jacket
Cooling area	3.57
Pressure gauge	32mm
Sample valve	25mm
Drain outlet	38mm
safety valve (PVRV)	38mm
Pressure Regulator	20mm
Butterfly valve	25mm/32mm/38mm
100% TIG welding with pure argon gas shield with	yes
Tri-clamp	51mm
CO2 Pressure Relief Device	25mm

Description

Main Features.

1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China.
2. The cooling efficiency of Maitreya plate jacket is greatly improved.
3. Two stage cooling mode.
4. The insulation layer material is high-grade polyurethane with a thickness of 80mm.
5. Polishing accuracy up to Ra0.4μ m.
6. Strict tank pressure test.
7. Energy conservation and pollution emissions.

Accessories：

Successful Sale Cases： Our Services.

1. Pre-saleSend us your site drawings or dimensions, and we will provide you with the floor area of the beer equipment. Then, according to your requirements, the technical engineer will draw the drawings. For a more intuitive view of the device layout, we can also provide 3D sketch.
2. After-sale
-We can provide production pictures to let you clear of production progress and production details;
-We will do equipment test and provide test report to you;
-We will number the pipes and provide photos of the remaining pipes that need to be assembled,Greenhand can finish it;
-Providing equipment installation, debugging, and personnel training service;
-Tank body guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

Production Workshop.

We choose stainless steel 304/316 plates from well-known domestic brands, use professional machines to cut and shape the plates, and then have workers with more than 10 years of production experience to process and produce them. After the product is completed, our professional inspectors will inspect the product, and a third-party or Alibaba inspection team will also come to the factory to inspect the product. If everything is fine, we will arrange for package and transportation.

Packaging & Shipping.

1. In order to help customers to install easily, All piping mark numbers before shipping.
2.All the accessorizes for brewhouse and fermenting will be counted and packed separately.

3.Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.

Don’t miss out on the opportunity to own this outstanding beer brewing equipment. Contact us today and start brewing exceptional beers for your customers.
