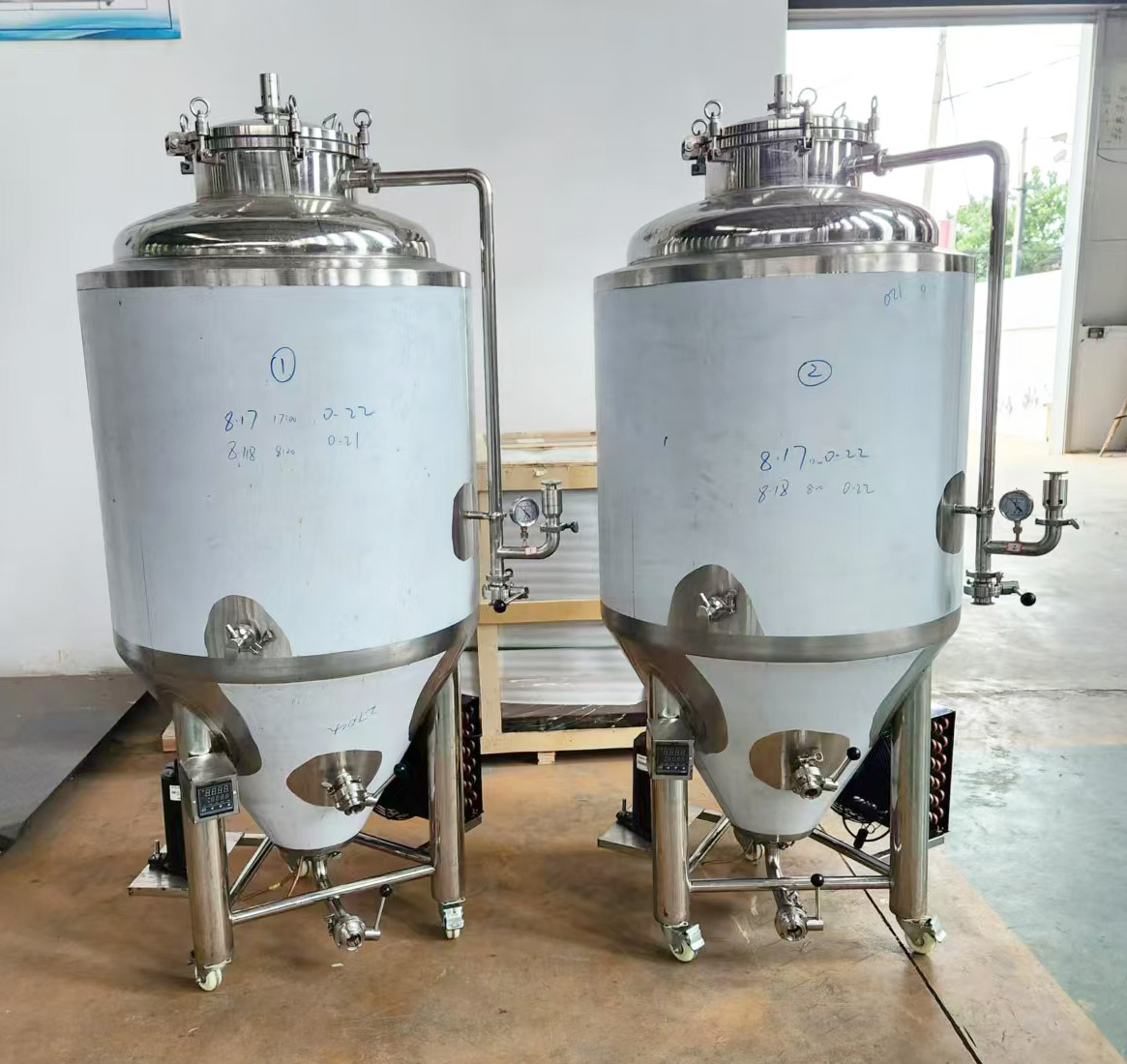

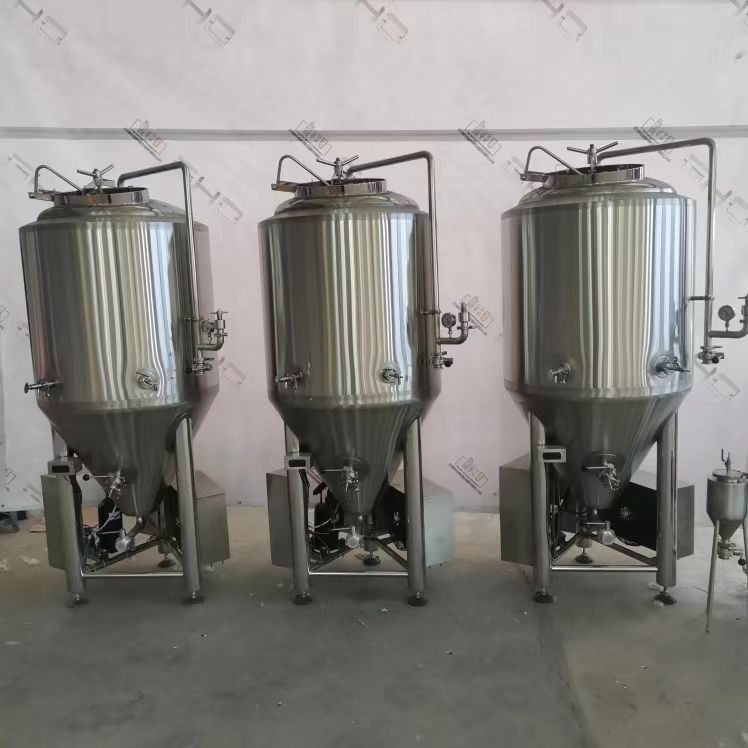

GHO 500L SUS 304 Conical Fermentor with Chiller

1. Volume from 100L-500L,could be customized according to customer needs.
2. Material use sanitary stainless steel 304.
3. Four layer structure: Inner body,Refrigeration copper pipe,Isolation layer and Outer body.
4. Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish.
5. Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket.
6. All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish.
7. Temperature controller, automatic temperature control for each fermenter.

• Scientific design
• Take small space
• Easy to clean
• 100% stainless steel 304
• Easy to install
• 3 Years warranty

Phone : +86-531-66621211
E-mail : info@gstachina.com
Whatsapp : +86-18660398316

Description

Name	GHO 500L SUS 304 Conical Fermentor with Chiller
Application	Hotels, Food & Beverage Factory, Restaurant,KTV,Pub
Brand Name	GHO
Function	Wort fermentation and maturation
Capacity(L)	500
Gross volume(L)	625
Effective volume(L)	500
Size (about) (mm)	106010602400
Weight (Kg)	236
Material	SUS304
Outer TH (mm)	2
inner TH (mm)	2.5
Insulation material	Polyurethane
Insulation thickness (mm)	80
Top type	Seal head
Manhole type	top
Manhole size (mm)	350*450
Cone Degree	60degree
CIP pipe diameter (mm)	32
CIP ball	32mm
Temperature sensor	10mm
Side fitting thermowell diameter and length about	8mm(D)*30mm(L)
Support leg	89*89mm
Adjustable bolt	M20
Polishing	acid passivation
Design pressure	0.3-0.4 Mpa
Working pressure	0.15-0.2Mpa
Cooling type	The refrigerant passes through coiled copper tubes in the tank
Cooling area	1.1
Pressure gauge	32mm
Rotating Racking arm	32mm
Sample valve	25mm
Drain outlet	38mm
Hop port	custom
safety valve (PVRV)	38mm
Pressure Regulator	20mm
Butterfly valve	25mm/32mm/38mm
100% TIG welding with pure argon gas shield with	yes
Tri-clamp	51mm
CO2 Pressure Relief Device	25mm

Main Features.

1.With rotating racking arm for beer delivery, which is convenient and flexible to deliver beer.

2.All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.

3.Strict quality control and process inspection & testing system.

4.Polished/Brushed/Mirror finish/Pickling passivation is optional.

5.Shadowless manway or top manhole according to the customer’s fermentation process and brewing types.

6.Bigger headspace, the cover headspace volume is calculated separately and extra.

7.Specially designed dimpled cooling jackets outside to ensure cooling efficiency, 60-degree cone angle for convenient for yeast excretion.

8.Fermenters are made by 100% stainless steel 304, even bolt and screw.
9.Our fermenter has more than 125% space of working capacity, promise foam won’t go out.

10.We test 5 times before delivery, to ensure good delivery status.

11.The temperature of each fermenter is independently controlled, the cooling speed is fast, and there is no need for ice pipes and ice water tanks, saving space.

Fermenter accessories：

Successful Sale Cases： Our Services.

1. Pre-saleSend us your site drawings or dimensions, and we will provide you with the floor area of the beer equipment. Then, according to your requirements, the technical engineer will draw the drawings. For a more intuitive view of the device layout, we can also provide 3D sketch.
2. After-sale
-We can provide production pictures to let you clear of production progress and production details;
-We will do equipment test and provide test report to you;
-We will number the pipes and provide photos of the remaining pipes that need to be assembled,Greenhand can finish it;
-Providing equipment installation, debugging, and personnel training service;
-Tank body guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

Production Workshop.

We choose stainless steel 304/316 plates from well-known domestic brands, use professional machines to cut and shape the plates, and then have workers with more than 10 years of production experience to process and produce them. After the product is completed, our professional inspectors will inspect the product, and a third-party or Alibaba inspection team will also come to the factory to inspect the product. If everything is fine, we will arrange for package and transportation.

Packaging & Shipping.

1. In order to help customers to install easily, All piping mark numbers before shipping.
2.All the accessorizes for brewhouse and fermenting will be counted and packed separately.

3.Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
